Topbond® MFGCP
Topbond® Micro-foamed galvanized steel composite panel<MFGCP> is a composite panel which sandwiched by two layers of galvanized steel sheet and micro foaming high density polyethylene core,using high polymer adhesive film through hot pressing.The galvanized layer of the steel sheet should be double Z275(G90)or above,the yield strength should be over 550MPa; after pretreatment by passivation on the galvanized steel sheet’s surface,then add two layers paint by roller coating,that are the primer and top,the top is silicone modified polyester paint.The steel sheet’s back side(laminated layer) also need pre-treatment by passivation ,what’s more to add a special pre-coating to improve the bonding strength between steel sheet and the polyethylene core through adhesive film.

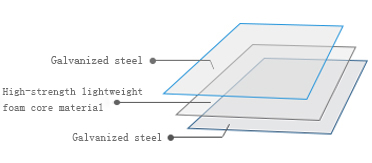

Topbond® MFGCP structure
Galvanized steel panel
Adhesive film
Micro-foamed PE core
Adhesive film
Galvanized steel panel
Topbond®MFGCP Specification
Galvanized steel panel thickness：0.4mm （0.2MM -1.0MM）
MFGCP thickness ：7.5MM、13MM（6MM-35MM）
MFGCP width：500MM-2750MM
MFGCP Length：500MM-160000MM
Topbond® MFGCP Application
With features of high tensile, High shear strength, light-weight,low density ,corrosion resistance,heat insulation,long service life,high quality, Topbond MFGCP is regarded as the best choice for the below area：

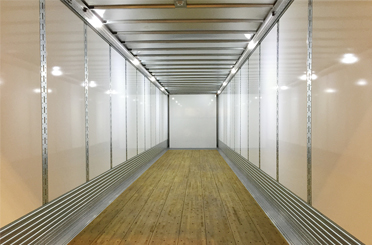

1、Transport industries： Van body，Truck body, trailer， Media car, Recreational vehicle（RV）, BP ultimate, ambulance, Buses, The mobile selling car、Caravan、Container.
2、Home furnishing &Mobile architecture：Modern furniture， Laboratory, Partition.
Topbond® MFGCP Benefits
1,Light and strong
High tensile
High shear strength
Light weight, low density.
2,Green and environmentally friendly
Energy saving
100% Recyclable
3,Long service life
4,Objectionable odor free and formaldehyde free
5,Water proof and moisture dampening
With the excellent ability of water proofing, Topbond®MFGCP can be well applied in the over-water buildings.
6,Corrosion resistant
Strong resistance to chemicals
Seawater Corrosion
Superior weather resistance.
7,Sound isolation
Efficient in reducing the damping vibration and absorbing the noises
8,Energy absorption
Special micro-foamed structure makes topbond® MFGCP excellent in absorbing energy, impact resistance and sharing the load.
9,Superior convenient installation
Have superior performance, decrease the need for rivets and sub-frames.
|
